Bearing Mount CNC
a CNC program for a bearing mount

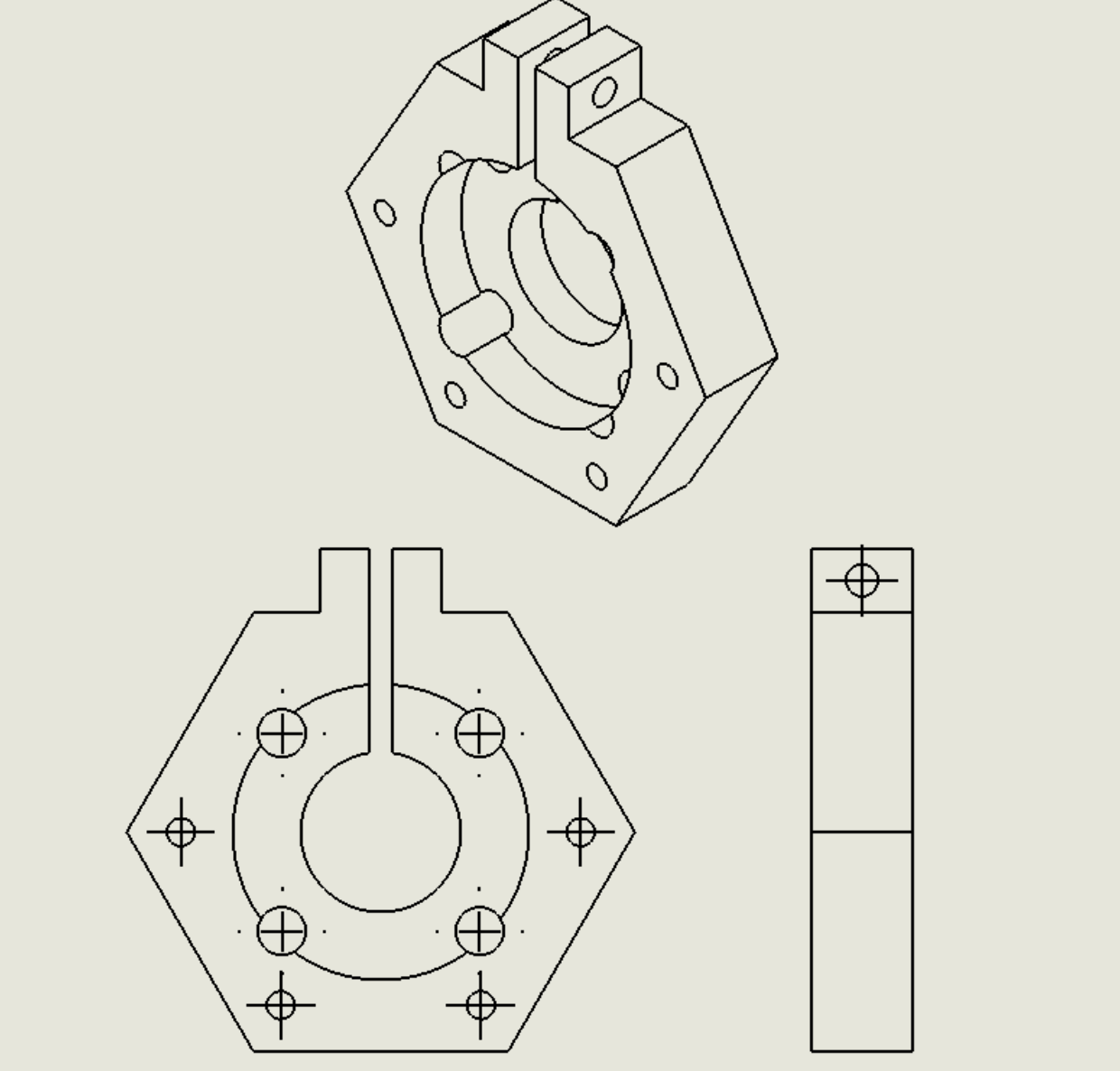

Part drawing on left side and CNC program on right side.
For the wheel module, a bearing mount is used to hold the bearing in place to reduce friction between the axle of the motor and the wheel hub. This bearing mount was made using an FDM 3D Printer and the goal was to switch to metal.
Using Fusion360’s CAM software, the tool paths were created. The details are documented here.
