Robotic Arm

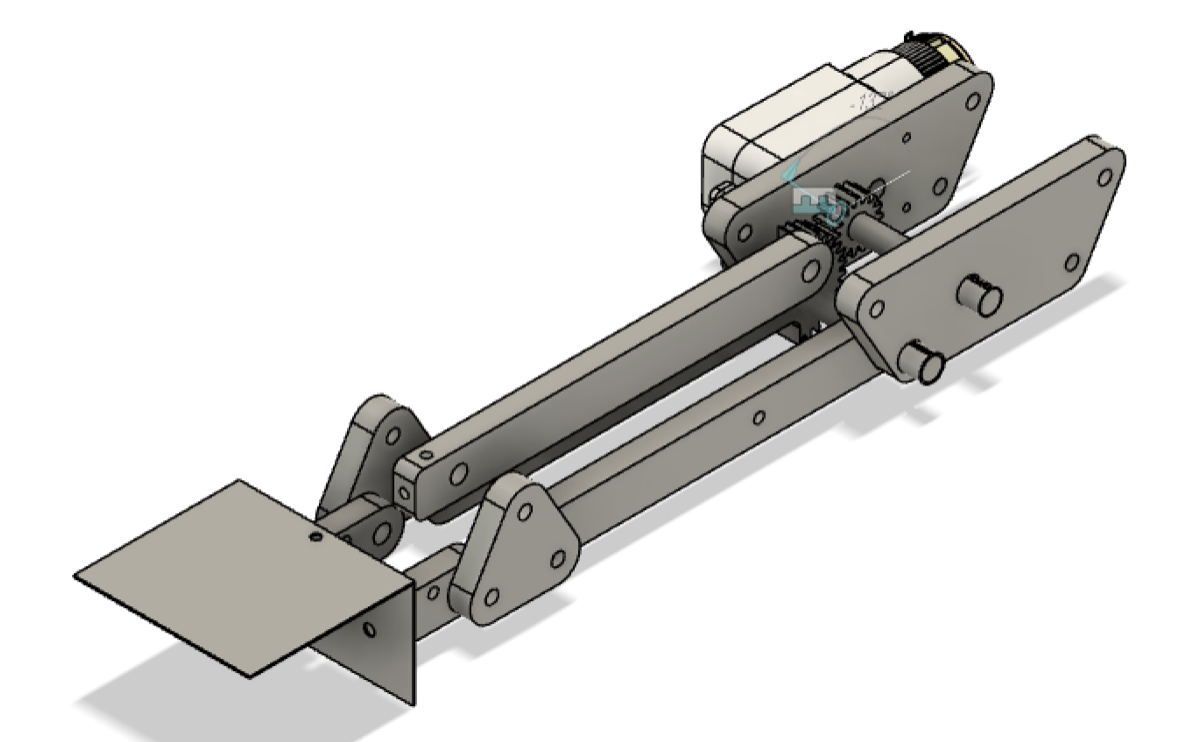

the forearm of a 2 joint robotic arm

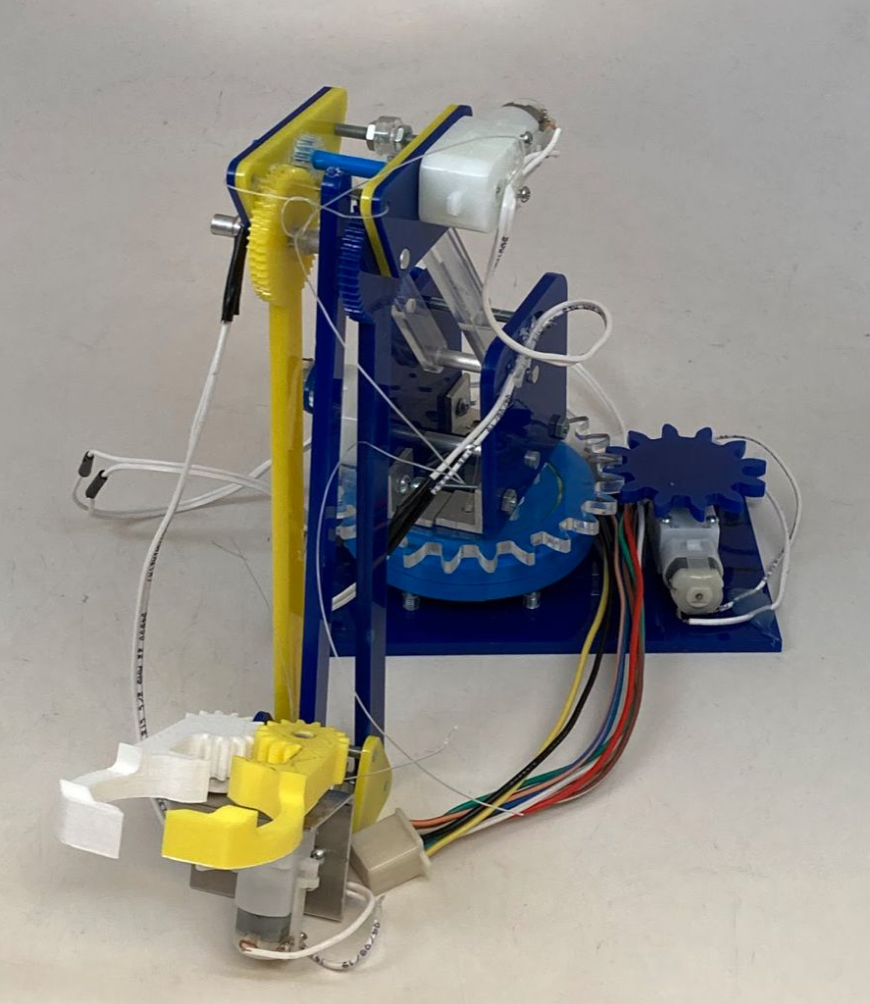

CAD and Physical Model

My group and I was tasked with creating a robot that was capable of picking up a 3 inch cube from various heights around the playing field and tranferring it to a central location. The rules can be viewed here.

I brainstormed some ideas for the robot. Due to the lack of controls, I leaned heavily towards a robotic arm.

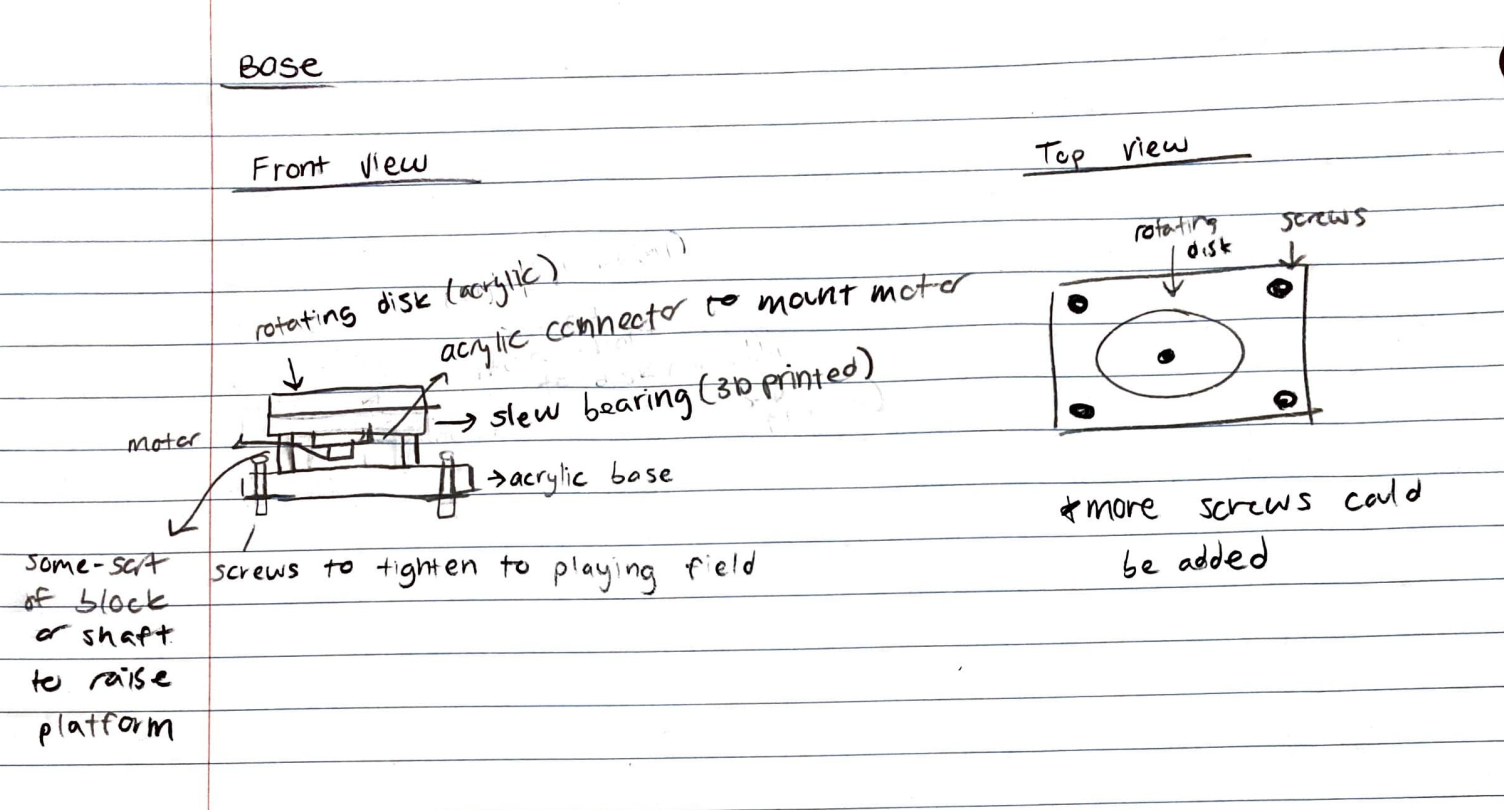

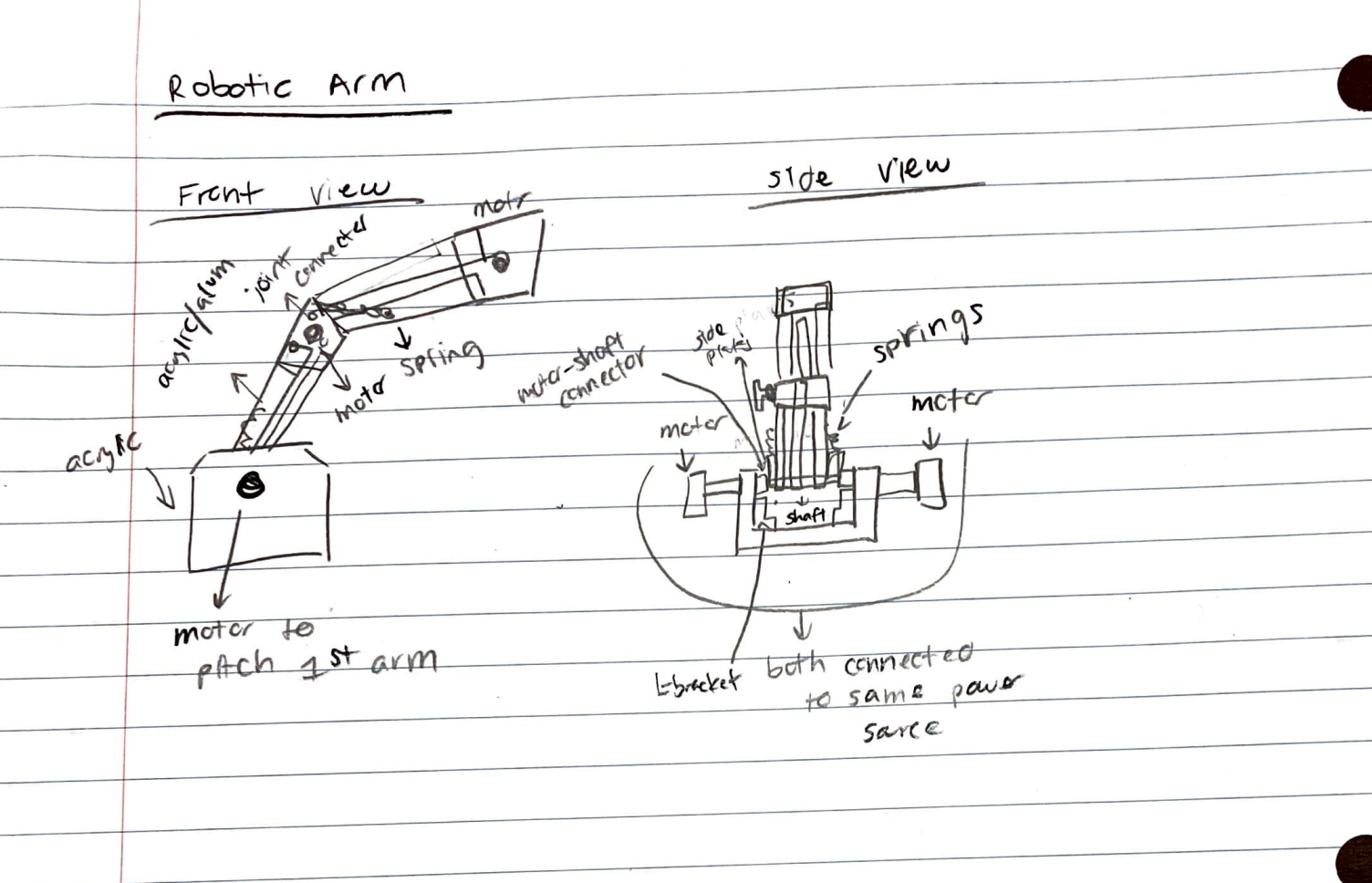

Concept sketches

My role was to create the upper joint of a 2 joint robotic arm. I utilized a four-bar linkage mechanism to ensure the gripper was always parallel with the floor. A proof of concept was made to justify the design with cardboard.

Version 1 on the left and cardboard design on the right

The problem with this design was that I chose the wrong axis of rotation. I changed the axis of rotation and did calculations to determine the amount of torque needed that can be viewed here. Our first prototype was built.

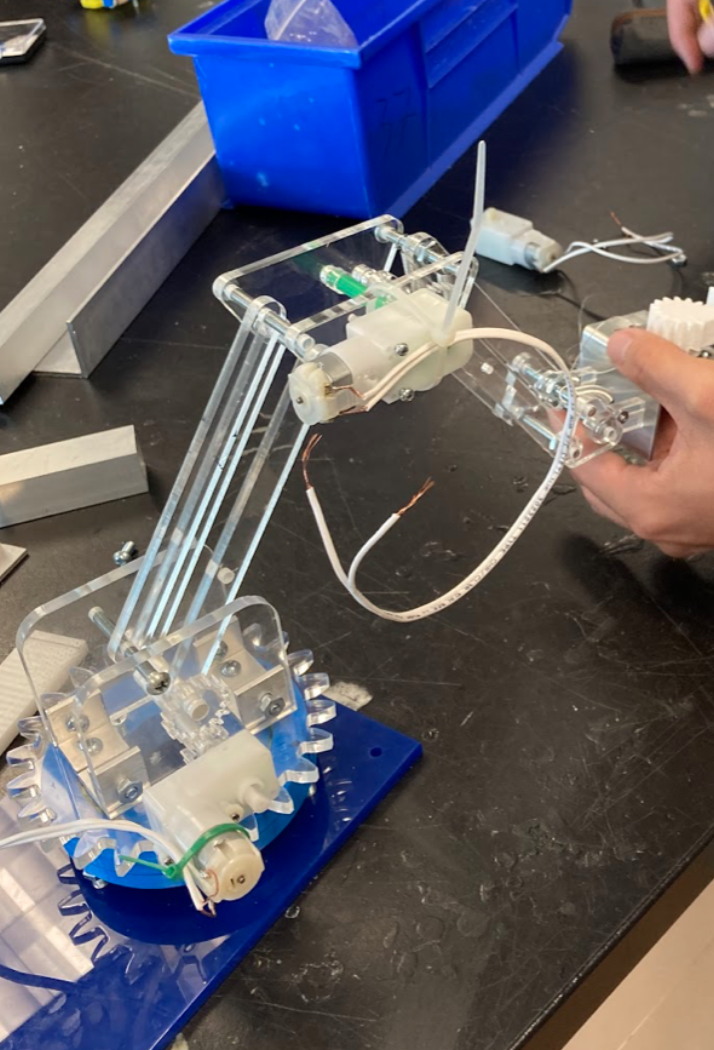

Version 2 on the left and first complete design on the right

I maximized the linkage lengths and did more hand calculations here to determine the amount of torque needed. Due to the sector gear, it could not rotate 180 degrees. I also made both the linkages have gears to distribute the load more evenly and added more teeth for a larger range of motion.

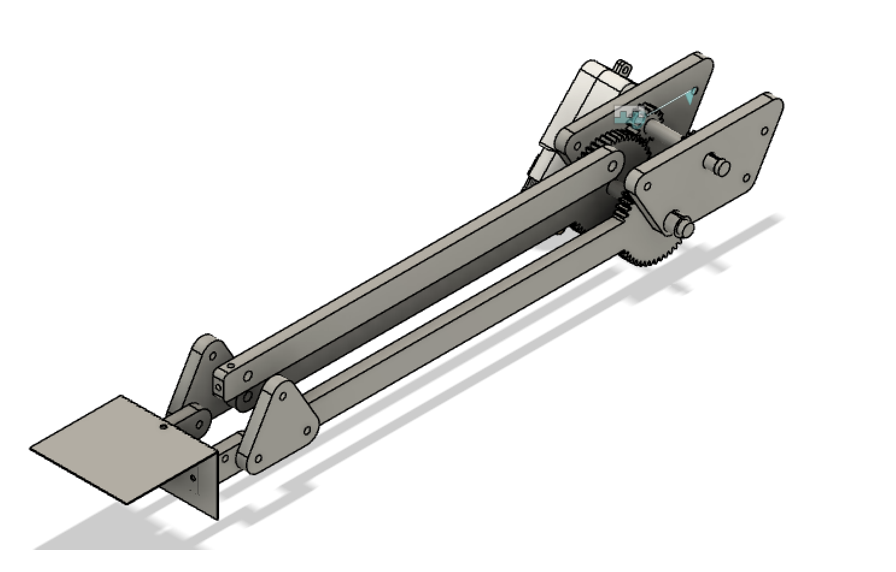

Version 3 on the left and version on the right version 4.

The final report, presentation, and animation are embedded here.
